30 days of node | Day 13 | Signup form in HTML using express.js framework of node.js and mongodb

We've reached day 13th of our 30 days of node and here we are with our first project tutorial in which we create a login system using HTML5 , CSS3 , bootstrap , node , express and mongodb. What's unique about this tutorial is that you get to learn everything from the html and styles to complex technical topics like perform HMAC operation on password.
Please Note that encrypting passwords with SHA is unsafe and we strongly recommend that you should not use it in production.

Name : It takes user name as input. Validations are not implemented here.
Email : It takes email id as input. Validations are implemented using HTML5 so, only valid emailID will work.
Password : It takes password as the input. Validations are not implemented.
Phone : It takes the contact number of user as input. Validations are not implemented.
Submit : When we click the submit button, the action attribute of form tag will direct the data to the sign_up route of the backend app .

We are starting with the coding part now, Although the code is self explanatory but informative comments are provided where ever needed.

index.html :


<html>
	<head>
		<title> Signup Form | nodejsera </title>

		<!-- Including bootstrap v3.3.7 -->
		<link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/css/bootstrap.min.css" integrity="sha384-BVYiiSIFeK1dGmJRAkycuHAHRg32OmUcww7on3RYdg4Va+PmSTsz/K68vbdEjh4u" crossorigin="anonymous">

		<!-- Including Custom css -->
		<link rel="stylesheet" type="text/css" href="style.css">

	</head>
	<body>

		<br>
		<br>
		<br>
		<div class="container" >
			<div class="row">
				<div class="col-md-3">
					<!-- Blank DIV -->
				</div>

				<div class="col-md-6 main">
					<!-- Form Tag starts here -->
					<!-- Action attribute is the route on backend. Method is POST -->
					<form action="/sign_up" method="post">

						<h1> Signup form </h1>

						<input class="box" type="text" name="name" id="name" placeholder="Enter your Name"  required /><br>

						<input class="box" type="email" name="email" id="email" placeholder="Enter your E-Mail " required /><br>

						<input class="box" type="password" name="password" id="password"  placeholder="Enter your Password " required/><br>

						<input class="box" type="text" name="phone" id="phone"  placeholder="Enter your Phone Number " required/><br>
						<br>
						<input type="submit" id="submitDetails"  name="submitDetails" value="Submit Your Details" /><br>

					</form>

				</div>


				<div class="col-md-3">
					<!-- Blank DIV -->
				</div>

			</div>
		</div>
	</body>
</html>

success.html : When user entry has been successfully created, then user will be redirected by the server to the


							success.html

page, otherwise the error message will be printed.


<html>
	<head>
		<title> Signup Form | nodejsera </title>
		<link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/css/bootstrap.min.css" integrity="sha384-BVYiiSIFeK1dGmJRAkycuHAHRg32OmUcww7on3RYdg4Va+PmSTsz/K68vbdEjh4u" crossorigin="anonymous">

		<link rel="stylesheet" type="text/css" href="style.css">
	</head>
	<body>
		<br>
				<br>
				<br>
		<div class="container" >
			<div class="row">
				<div class="col-md-3">
				</div>

				<div class="col-md-6 main">

					<h1> Signup Successful <br> Congratulations!!</h1>

				</div>


				<div class="col-md-3">
				</div>

			</div>
		</div>
	</body>
</html>

We are using simple CSS for styling our Signup form. All the code here is self explanatory. Copy all this in a file named style.css .


@import url('https://fonts.googleapis.com/css?family=Josefin+Slab');

.main{
	padding:20px;
	font-family: 'Josefin Slab', serif;
	border : 2px solid #50d8a4;
	border-radius: 15px;

}
.main h1{
	font-size: 50px;
	text-align:center;
	font-family: 'Josefin Slab', serif;
	color: #549978;
}
input{
	font-family: 'Josefin Slab', serif;
    width: 100%;
	font-size: 30px;
    padding: 12px 20px;
    margin: 8px 0;
    border: none;
    border-bottom: 2px solid #50d8a4;
}
input[type=submit] {
	font-family: 'Josefin Slab', serif;
	width: 100%;
    background-color: #549978;
    border: none;
    color: white;
    padding: 16px 32px;
    text-decoration: none;
    margin: 4px 2px;
    cursor: pointer;
	border-radius: 15px;
}
input:focus,
select:focus,
textarea:focus,
button:focus {
    outline: none;
}

input:hover {
	font-family: 'Josefin Slab', serif;
    width: 100%;
    padding: 12px 20px;
    margin: 8px 0;
    box-sizing: border-box;
	border: none;
    border-bottom: 2px solid #549978;
}

input[type=submit]:hover {
	font-family: 'Josefin Slab', serif;
	width: 100%;
    background-color: #549978;
    border: none;
    color: white;
    padding: 16px 32px;
    text-decoration: none;
    margin: 4px 2px;
    cursor: pointer;
	border-radius: 15px;
}

Now, let's move on to the crux of our application i.e. the backend. We are using express.js framework of node.js for handling the routes. You can learn more about express and mongodb in the links provided below respectively :

Our backend is going to perform the following operations :

Receiving the values from the frontend.
Perform the hashing of the password using HMAC where the algorithm which we are using is sha512 and the key is the phone variable provided by the user.
Establishing a connection with MongoDB .

Creating a database. The name of the database is passed here :


var new_db = "mongodb://localhost:27017/database_name";

Database will be created with the name passed here.

Creating a collection. The name of the collection is passed here :
```

db.collection("details")


```
Collection will be created with the name passed here.
Storing the data received from the frontend in the mongodb database.
After the data is successfully stored , redirect the user to the success.html page.

Now let's move forword to the coding part of the backend :

Step 1 - Installation : Install the packages which we will be using in our signup application. crypto , path are inbuilt packages , so we needn't to install them. Let's install the rest of the packages :
- Installing express
```

npm install express --save


```
- Installing mongodb
```

npm install mongodb --save


```

Step 2 - Code : Now we are ready to start with our server.js file :

Including the required packages : express , mongodb , path , body-parser and crypto


var express = require('express');
var path = require('path');
var mongo = require('mongodb');
var bodyParser = require('body-parser');
var crypto = require('crypto');

Intializing the express and mongodb packages :


var app = express();
//enter the name of the database in the end
var new_db = "mongodb://localhost:27017/database_name";

Create the server and set the default routes as shown below :


app.get('/',function(req,res){
	res.set({
		'Access-Control-Allow-Origin' : '*'
	});
	return res.redirect('/public/index.html');
}).listen(3000);

console.log("Server listening at : 3000");
app.use('/public', express.static(__dirname + '/public'));
app.use( bodyParser.json() );
app.use(bodyParser.urlencoded({ // to support URL-encoded bodies
	extended: true
}));

function to perform HMAC operation on the password and also using phone number of the user as the key :


var getHash = ( pass , phone ) => {

				var hmac = crypto.createHmac('sha512', phone);

				//passing the data to be hashed
				data = hmac.update(pass);
				//Creating the hmac in the required format
				gen_hmac= data.digest('hex');
				//Printing the output on the console
				console.log("hmac : " + gen_hmac);
				return gen_hmac;
}

Receive request from the front and store it in the database. /sign_up route details :


// Sign-up function starts here. . .
app.post('/sign_up' ,function(req,res){
	var name = req.body.name;
	var email= req.body.email;
	var pass = req.body.password;
		var phone = req.body.phone;
	var password = getHash( pass , phone );


	var data = {
		"name":name,
		"email":email,
		"password": password,
		"phone" : phone
	}

	mongo.connect(new_db , function(error , db){
		if (error){
			throw error;
		}
		console.log("connected to database successfully");
		//CREATING A COLLECTION IN MONGODB USING NODE.JS
		db.collection("details").insertOne(data, (err , collection) => {
			if(err) throw err;
			console.log("Record inserted successfully");
			console.log(collection);
		});
	});

	console.log("DATA is " + JSON.stringify(data) );
	res.set({
		'Access-Control-Allow-Origin' : '*'
	});
	return res.redirect('/public/success.html');

});

Run : We can run this code
- Start the mongodb.To start MongoDB, run the command specific to your system configurations.
- Now run the server.js using the following command :
```

> node server.js


```

index.html
URL is : http://127.0.0.1:3000/public/index.html

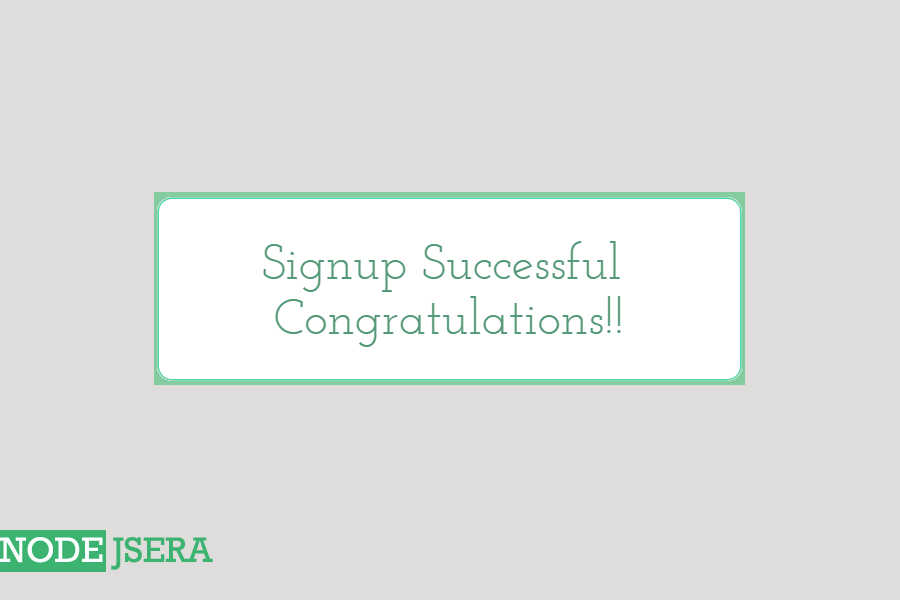

Success.html :
URL is : http://127.0.0.1:3000/public/success.html

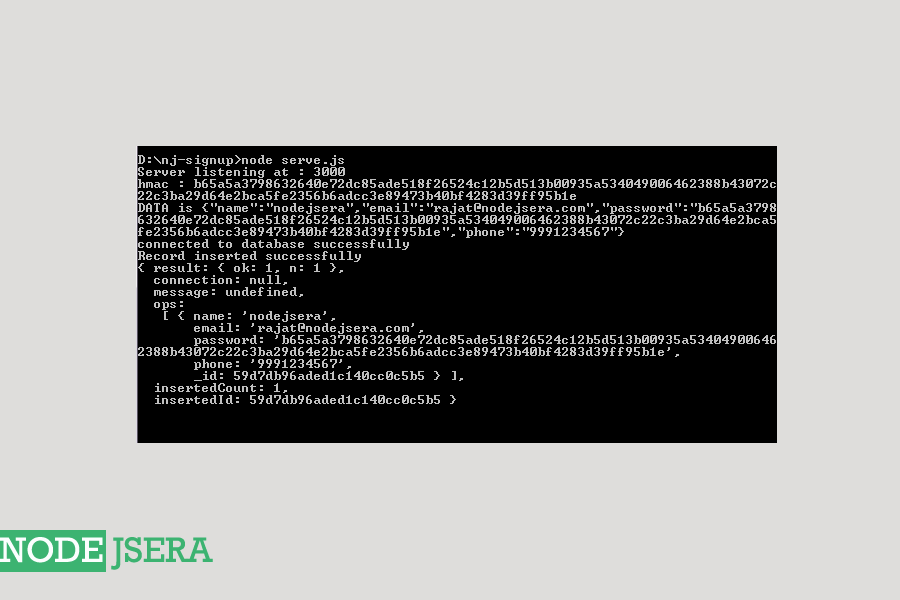

SnapShot of the backend up and running :

In this chapter of 30 days of node tutorial series, We created our first project i.e signup application. We started with creating a simple static form with HTML5 and then styling that html form using css. After that we created our backend by using the express.js framework of node. Lastly, we stored all the data in the nosql database MongoDB.

Get the full tested snippet here :
Clone it from Github :

Simple signup form in `HTML5` , styled with `CSS3` , using `express.js` framework of `node.js` for backend and `MongoDb` database for Storage.
